Initializing the QCefContext Instance

The first step in using QCefView is to initialize a QCefContext instance. Think of this as the QCefView equivalent of QApplication: you should have only one instance of QCefContext throughout your application's lifecycle.

#include <QApplication>
#include <QCefContext.h>
#include "MainWindow.h"

int
main(int argc, char* argv[])
{
  // 1. Create a QApplication instance
  QApplication a(argc, argv);

  // 2. Build a QCefConfig object
  QCefConfig config;
  // Set user agent
  config.setUserAgent("QCefViewTest");
  // Set log level
  config.setLogLevel(QCefConfig::LOGSEVERITY_DEFAULT);
  // Set JSBridge object name (default value is QCefViewClient)
  config.setBridgeObjectName("CallBridge");
  // Port for remote debugging (default is 0, disabling remote debugging)
  config.setRemoteDebuggingPort(9000);
  // Set background color for all browsers
  // (QCefSetting.setBackgroundColor will overwrite this value for a specific browser instance)
  config.setBackgroundColor(Qt::lightGray);

  // WindowlessRenderingEnabled is true by default, disable OSR mode by setting it to false
  config.setWindowlessRenderingEnabled(true);

  // Add command line arguments (any CEF-supported switches or parameters)
  config.addCommandLineSwitch("use-mock-keychain");
  // config.addCommandLineSwitch("disable-spell-checking");
  // config.addCommandLineSwitch("disable-site-isolation-trials");
  // config.addCommandLineSwitch("enable-aggressive-domstorage-flushing");
  config.addCommandLineSwitchWithValue("renderer-process-limit", "1");
  // config.addCommandLineSwitchWithValue("disable-features", "BlinkGenPropertyTrees,TranslateUI,site-per-process");

  // 3. Create the QCefContext instance, passing the QApplication instance and config
  // The lifecycle of cefContext must match the QApplication instance's lifecycle
  QCefContext cefContext(&a, argc, argv, &config);

  // 4. Create and show your application window
  MainWindow w;
  w.show();

  // 5. Run the application
  return a.exec();
}

Create QCefView Instance

Once you have initialized QCefContext, you can create a QCefView instance.

// Build settings for per QCefView
QCefSetting setting;
// Here we just set the default background to blue
setting.setBackgroundColor(QColor::fromRgb(0, 0, 255));

// Create the QCefView widget and add it to the layout container
cefViewWidget = new QCefView(uri, &setting, this);
ui.cefContainer->layout()->addWidget(cefViewWidget);
layout->addWidget(ui.cefContainer);

Create a Simple Web Page

Create a simple web page with the following content:

<html>
  <head>
  </head>
  <body id="main" class="noselect">
    <h1 align="center" style="font-size: 12pt">Web Area</h1>
  </body>
</html>

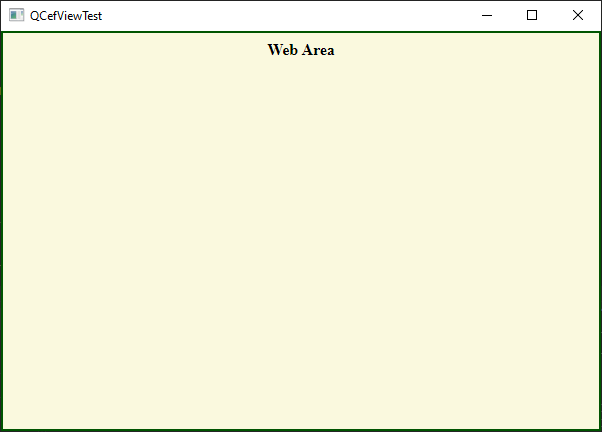

Run the Application

Now let's run the application.
